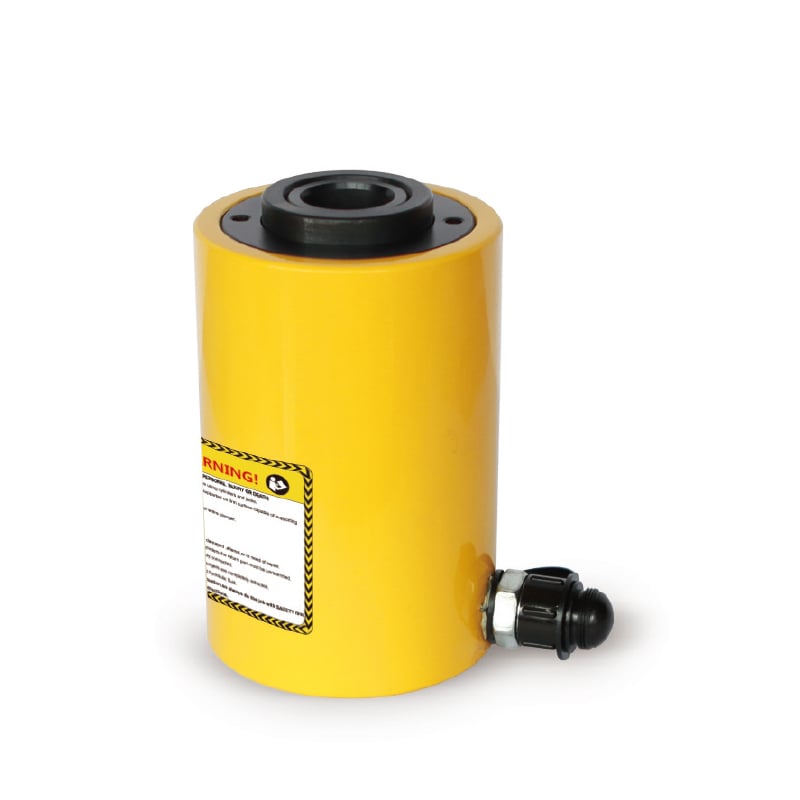

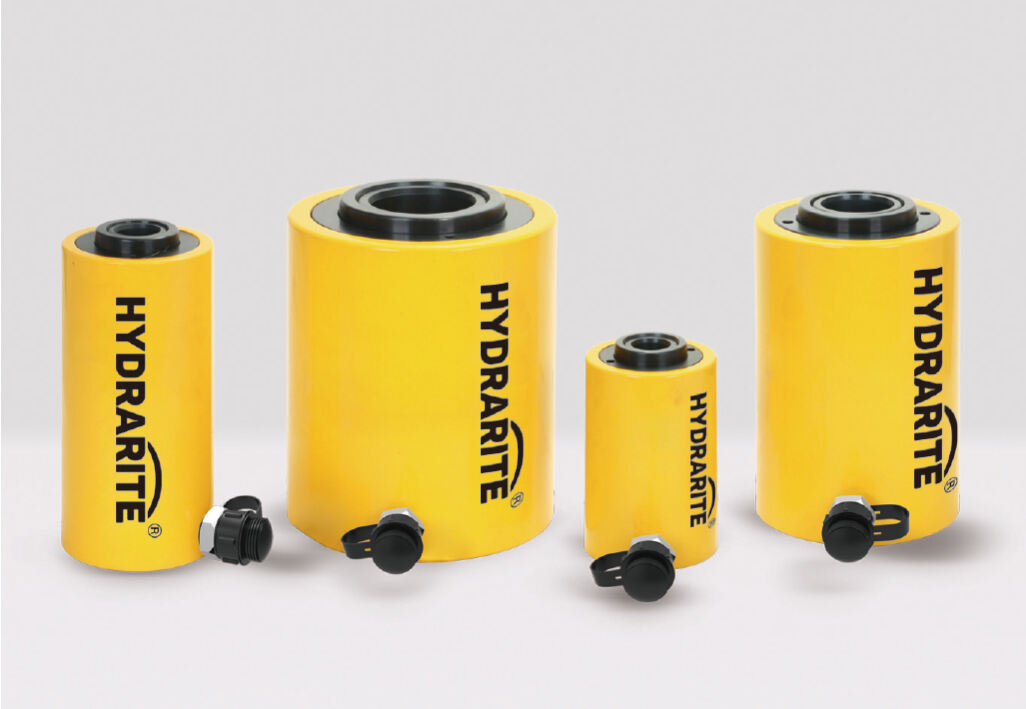

Single-acting Hollow Plunger Cylinders
For use in Testing,
Maintenanceand Tensioning
Applications
Description

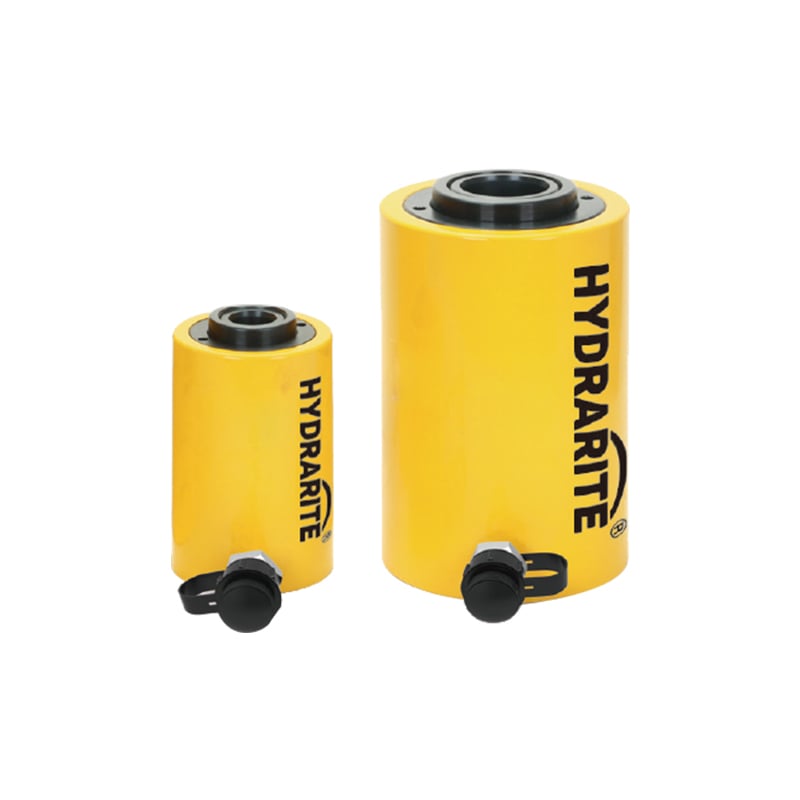

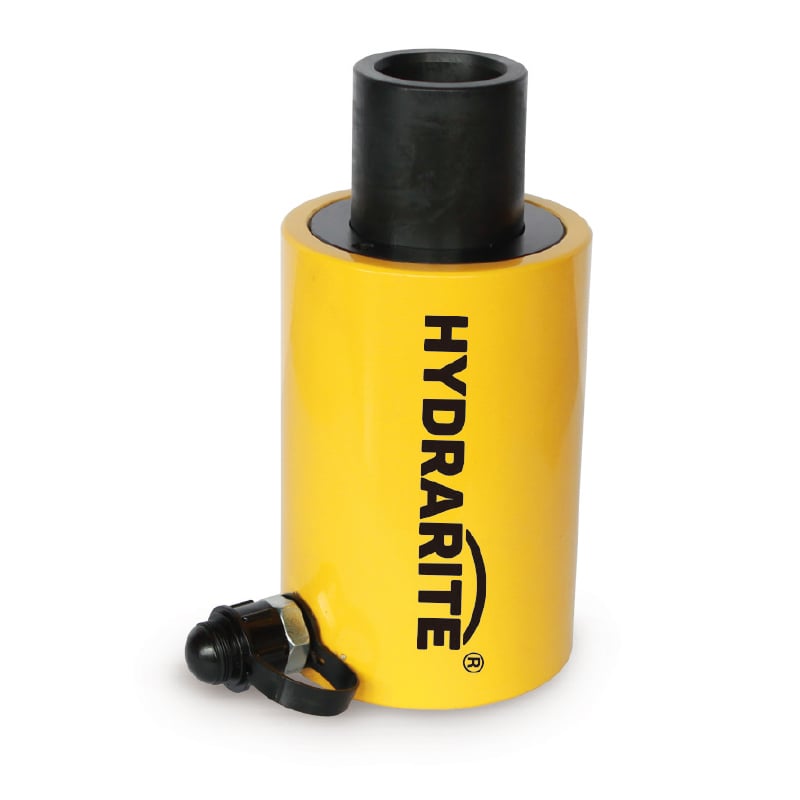

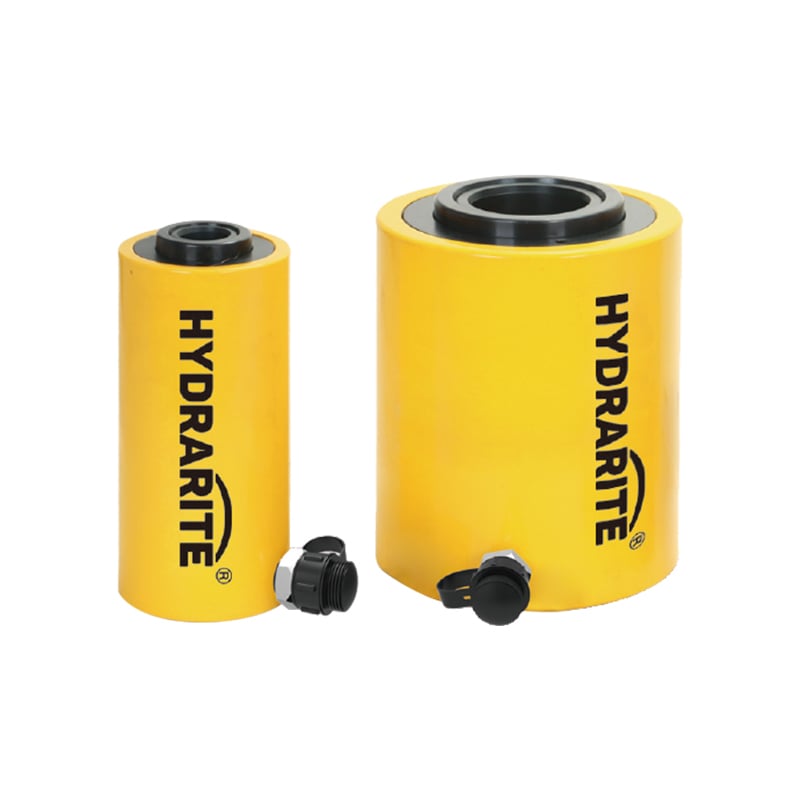

Single-acting Hollow Plunger Cylinders
Working pressure: 700bar
| Model | Cylinder Capacity@700 bar | Stroke (mm) |
Effective area (cm²) |
|

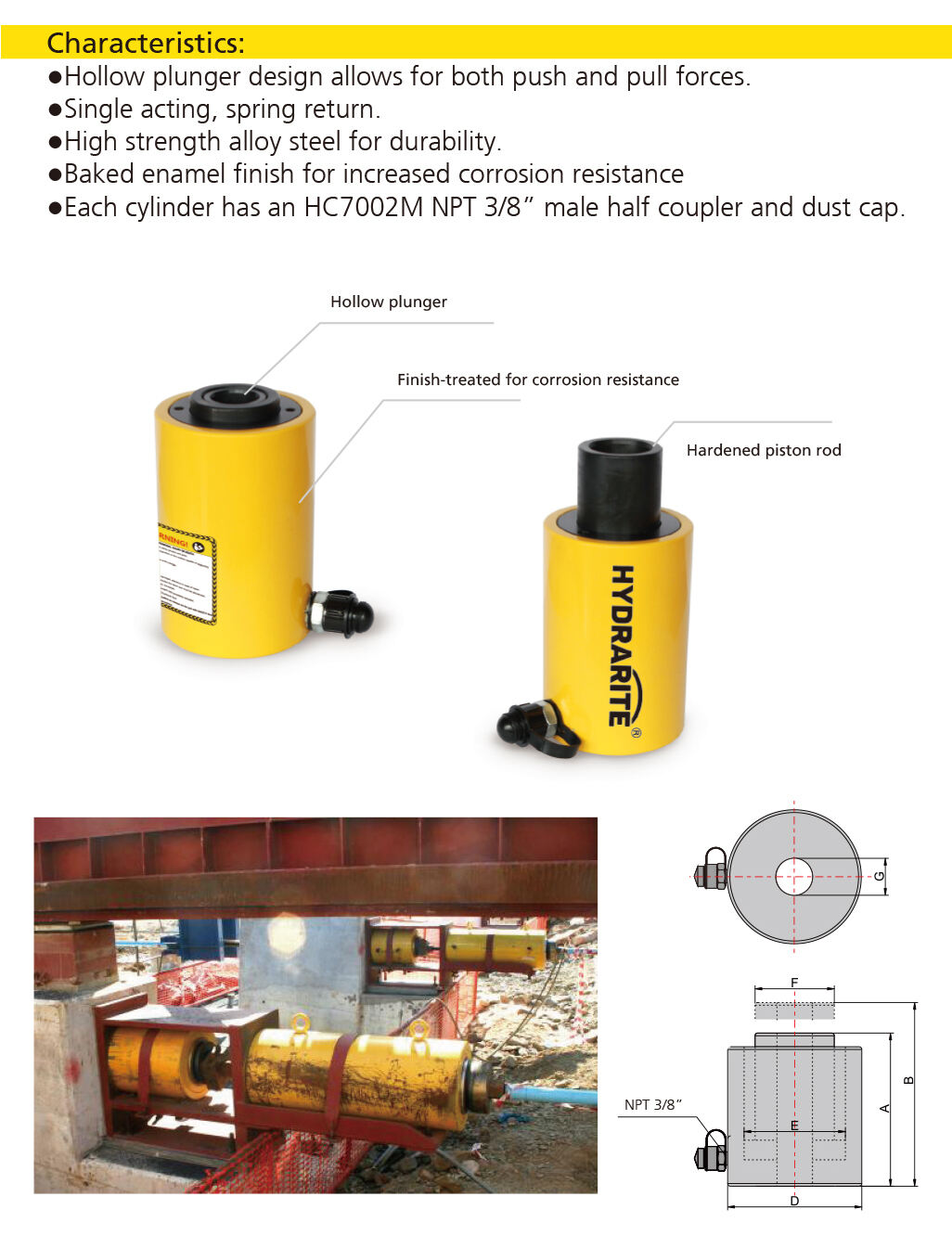

| Ton | KN | |||
| HHYG-2050K | 20 | 205 | 50 | 29.3 |
| HHYG-20100K | 100 | |||
| HHYG-3050K | 30 | 334 | 50 | 47.7 |
| HHYG-30100K | 100 | |||
| HHYG-6050K | 60 | 562 | 50 | 80.3 |
| HHYG-60100K | 100 | |||
| HHYG-10075K | 100 | 946 | 75 | 135.2 |
| Oil capacity （cm³） |
Closed height A (mm) |
Extended Height B (mm) |
Outside Dia. D(mm) |
Centre hole G (mm) |
Inside Dia. E (mm) |
Piston Rod Dia. F (mm) |
G.W. （Kg） |

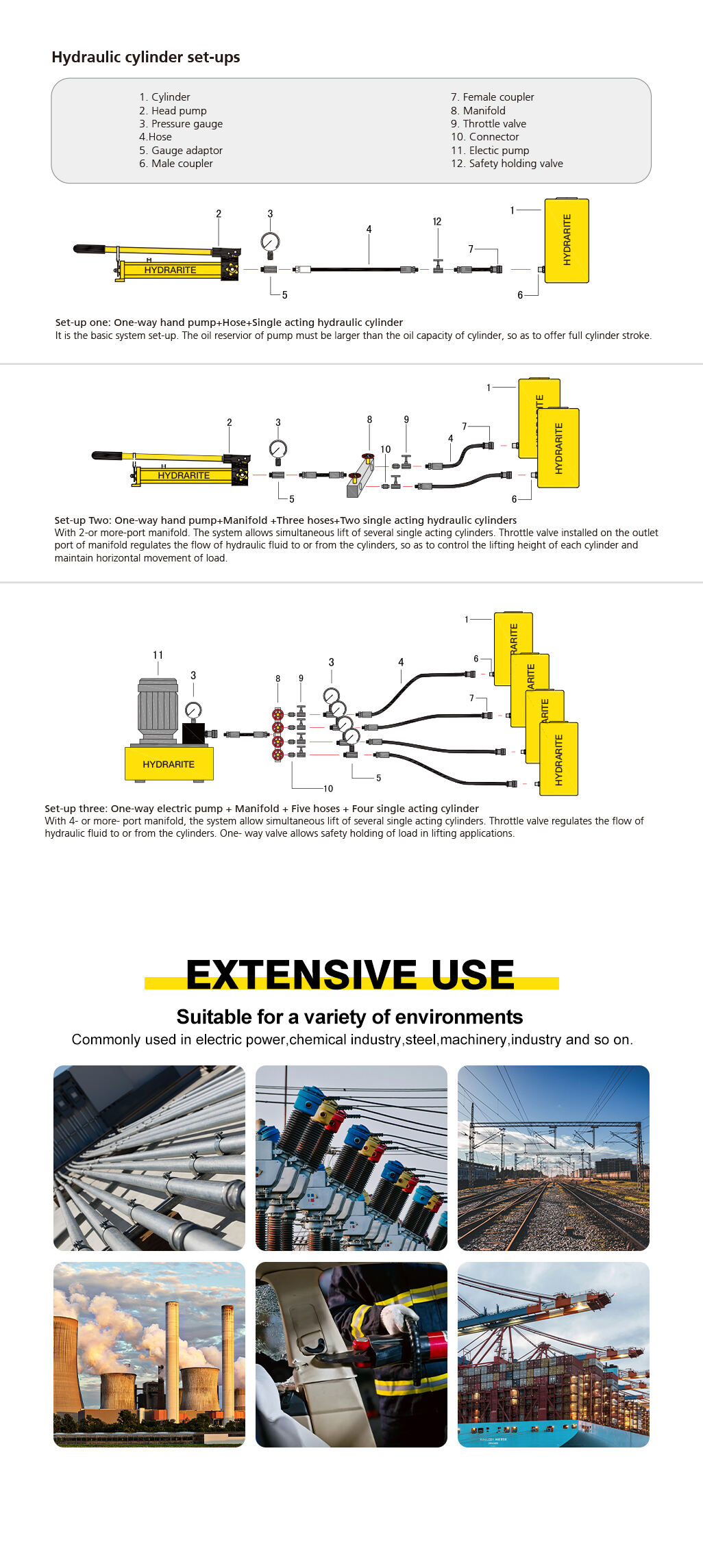

Handle | Recommended pump |
Model |
| 146 | 161 | 211 | 98 | 27 | 73 | 54 | 7.5 | No | HHB-700 | HHYG-2050K |
| 292 | 223 | 323 | 10 | No | HHYG-20100K | |||||
| 239 | 180 | 230 | 114 | 33 | 90 | 63 | 9 | No | HHYG-3050K | |
| 477 | 246 | 346 | 14.5 | No | HHYG-30100K | |||||
| 402 | 247 | 297 | 158 | 54 | 123 | 91 | 30.2 | Removable carrying handles |
HHYG-6050K | |
| 803 | 304 | 404 | 36.2 | HHB-700A | HHYG-60100K | |||||
| 1015 | 276 | 351 | 212 | 80 | 165 | 127 | 57 | HHYG-10075K | ||
