Description

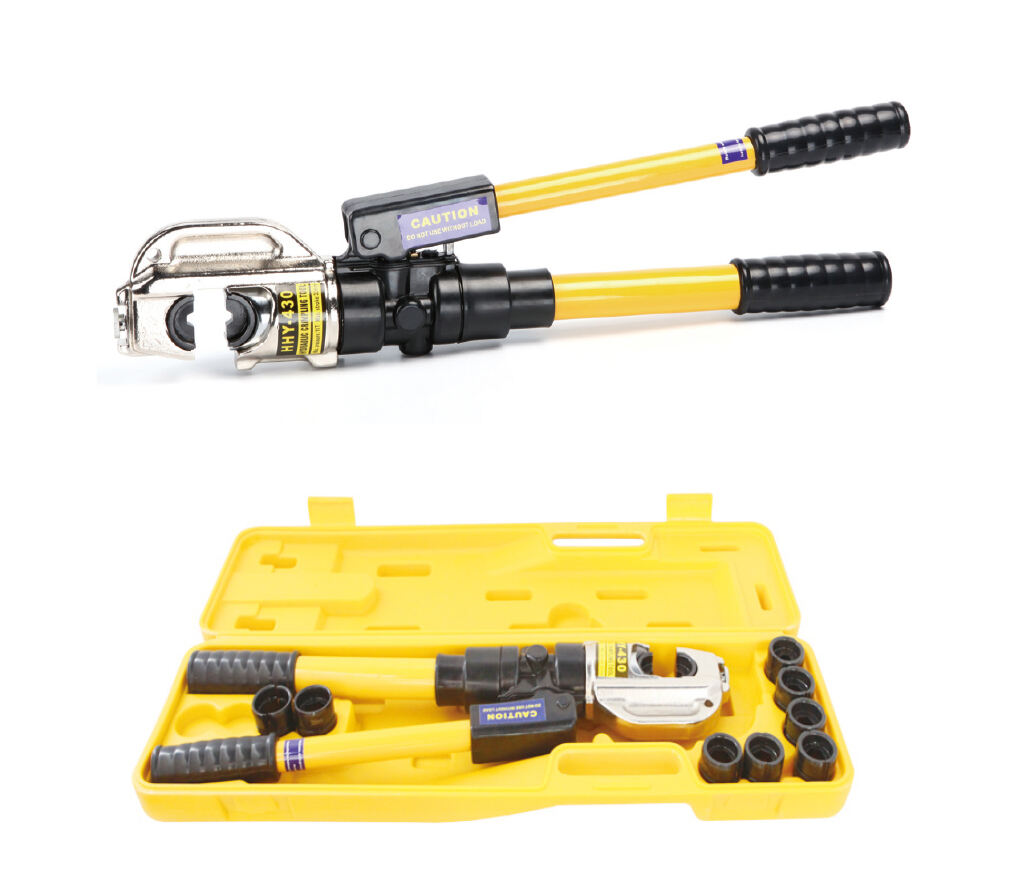

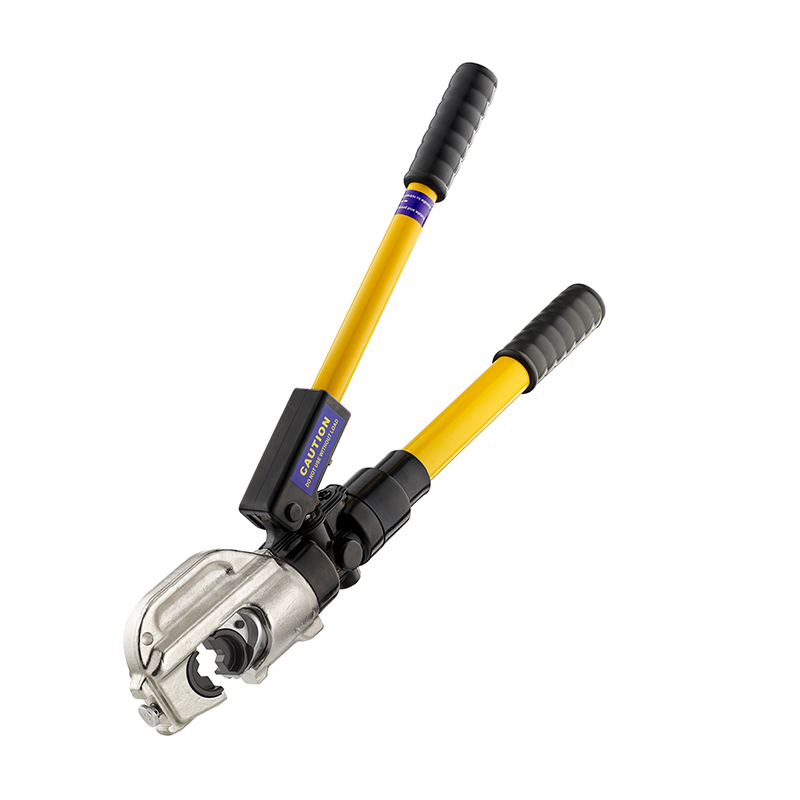

Hand Operated Hydraulic Crimping Tool, HHY-430
Designed for the electrical contractor and electric utility
lineman who is confronted with larger cable diameter and
larger connectors.
| Model | Hydraulic Ram Output | Ram Stroke | Crimping range(mm²) | Crimp pattern | Crimping dies(mm²) | G.W.(kg) | Packing size(mm) |
| HHY-430 | 11 Ton | 32 mm | 16-400 | Hexagonal type | 50,70,95,120,150,185,240,300,400 | 11 | 770X230X130 |
