Air Hydraulic Pipe Benders

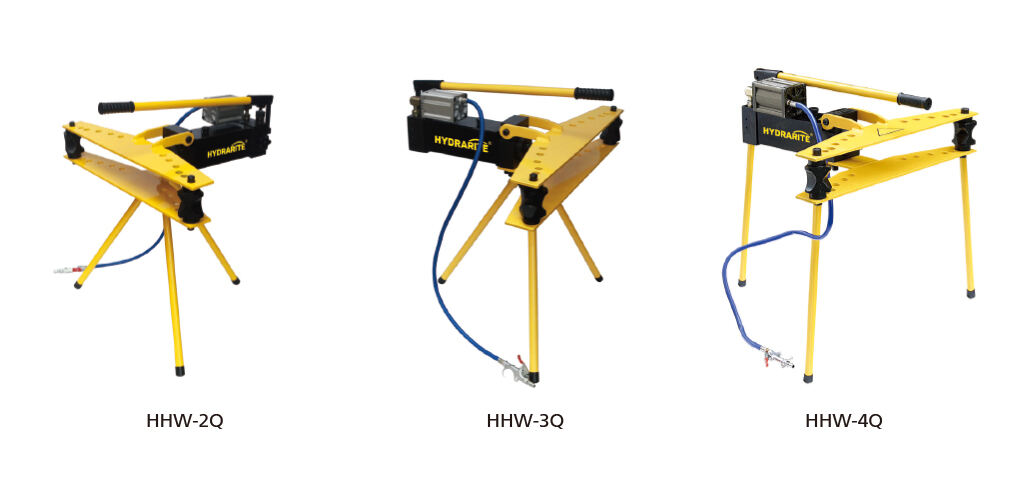

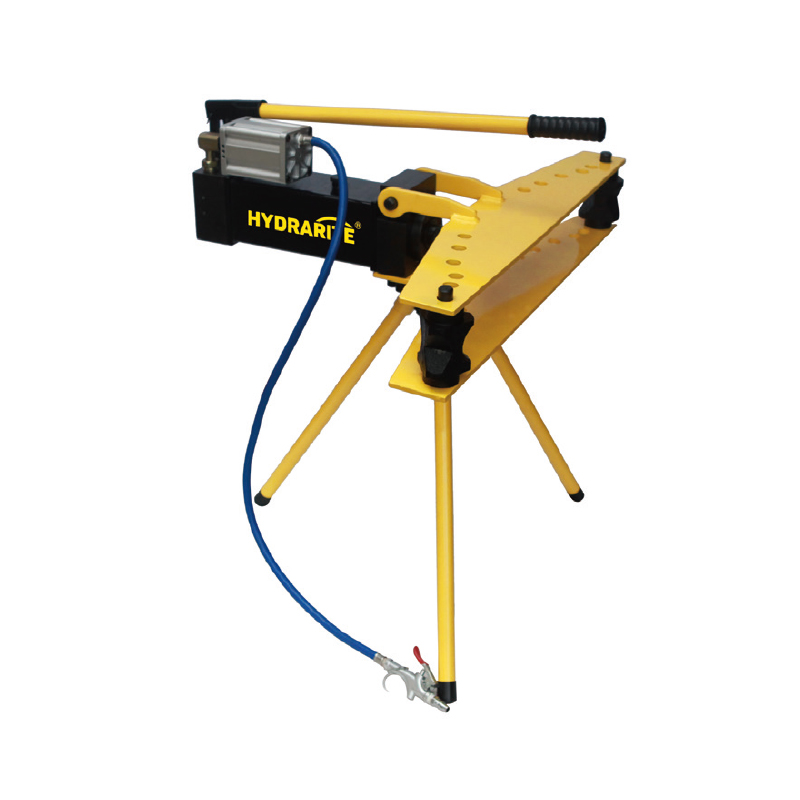

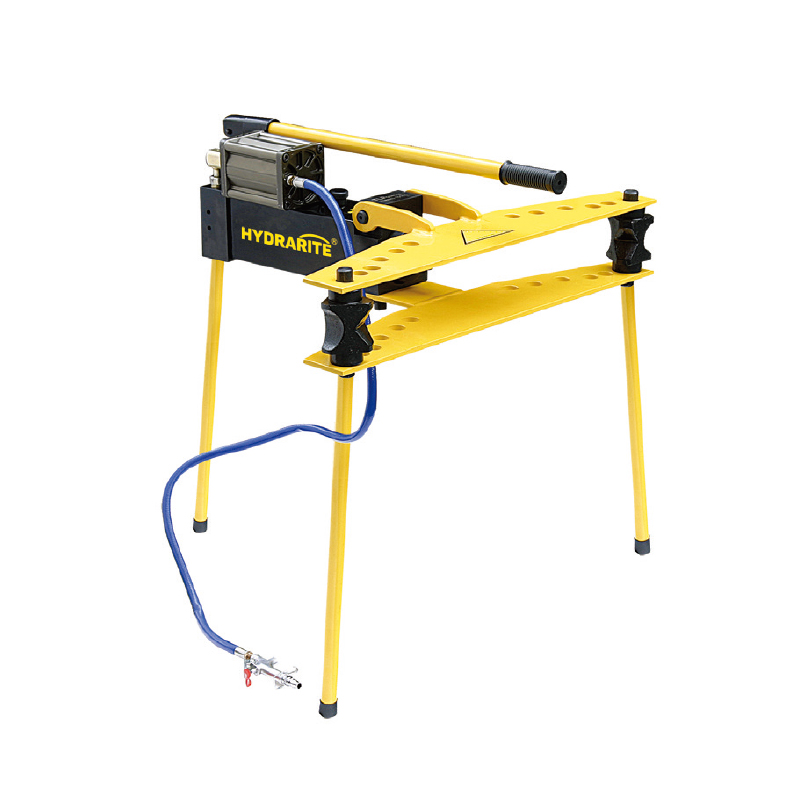

HHW-2Q, HHW-3Q, HHW-4Q

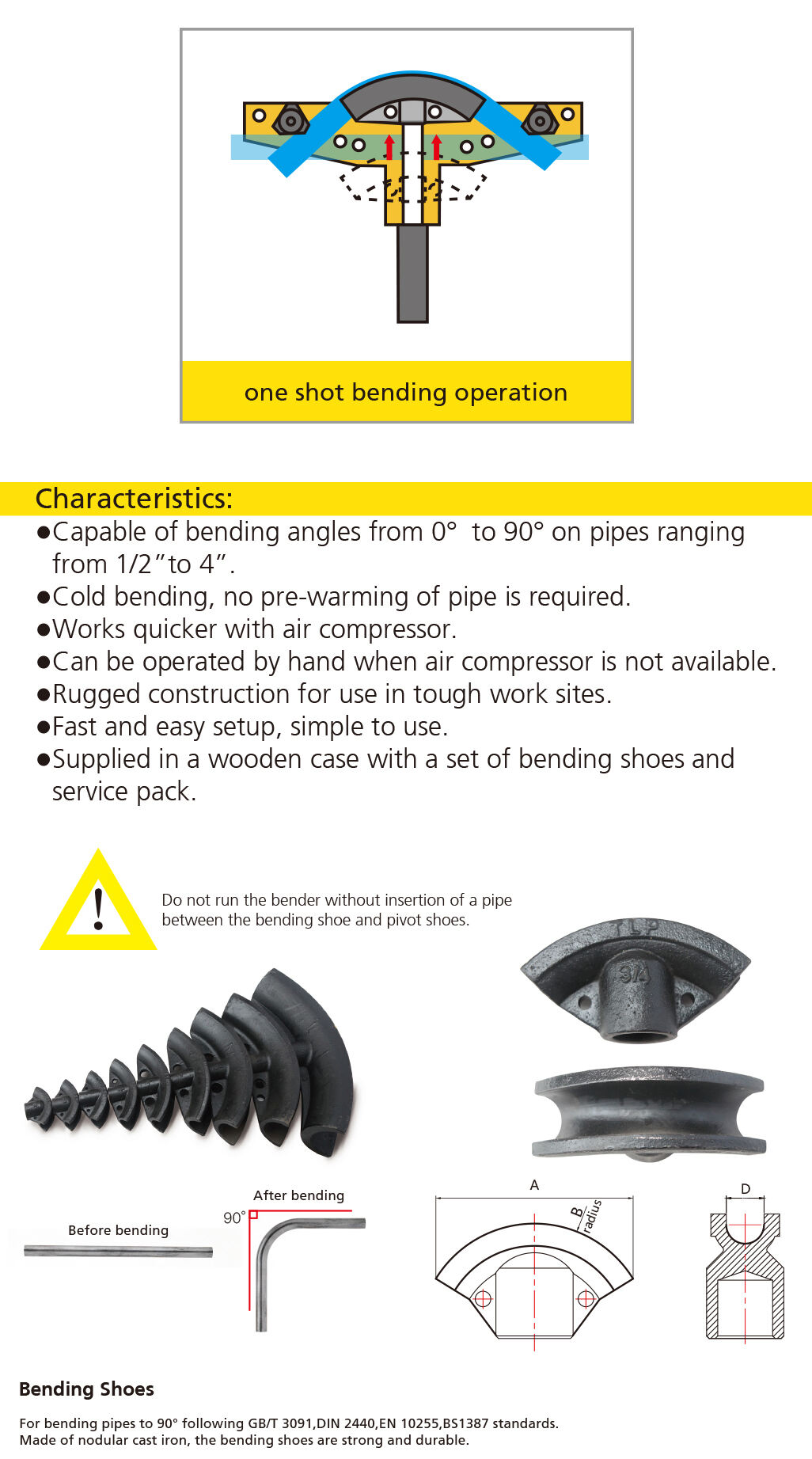

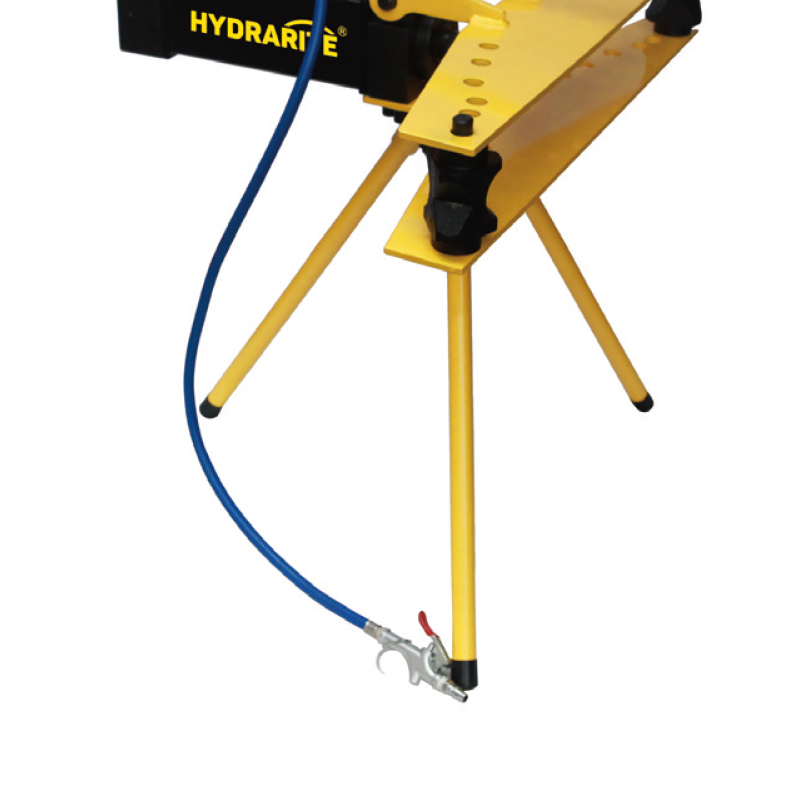

This versatile pipe bender efficiently bends angles from 0° to 90° on pipes ranging from 1/2" to 4" without the need for pre-warming, thanks to its cold bending capability. It operates quickly with an air compressor but can also be manually operated when needed. Designed for rugged construction, it withstands tough worksite conditions. The tool offers fast and easy setup, ensuring simplicity of use. It comes with a set of bending shoes and a service pack, all housed in a durable wooden case for convenient transport and storage.
Description
Air Hydraulic Pipe Benders
HHW-2Q, HHW-3Q, HHW-4Q
| Model | Hydraulic Ram Output (Ton) |
Ram stroke (mm) |
Air.pressure (kg/psi) |

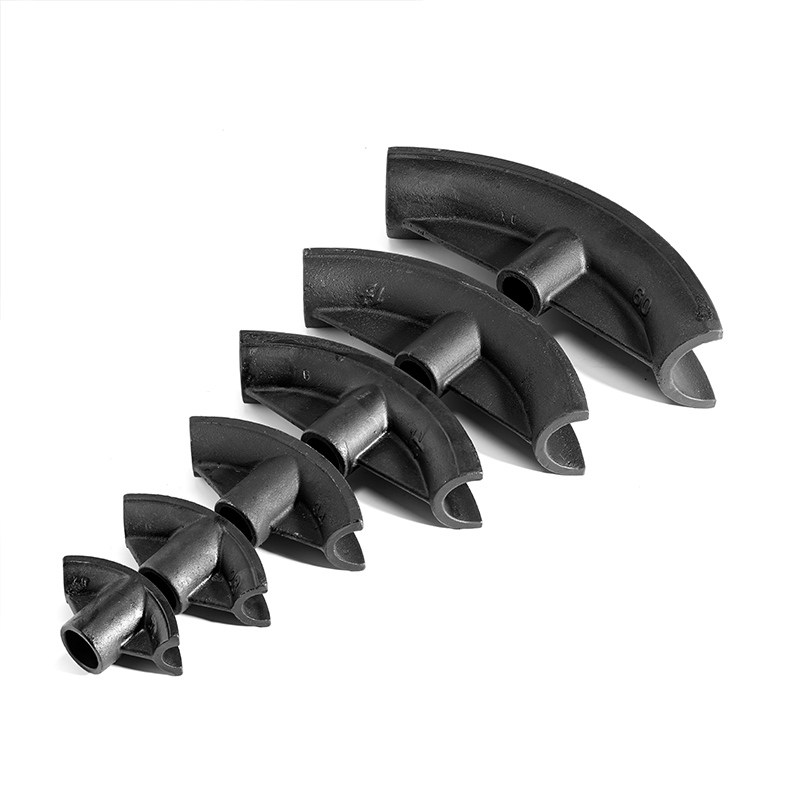

Bending shoes (inch) |
G.W. (Kg) |
Packing size (cm) |
| HHW-2Q | 13 | 250 | 8/116 | 1/2” 3/4” 1” 1¼” 1½” 2” | 53 | 73×32×20 |
| HHW-3Q | 20 | 290 | 8/116 | 1/2” 3/4” 1” 1¼” 1½” 2” 2½” 3” | 109 | 94×40×23 |
| HHW-4Q | 20 | 370 | 8/116 | 1/2” 3/4” 1” 1¼” 1½” 2” 2½” 3” 4” | 158 | 118×46×25 |
| Bending shoe size (inch) |
A (mm) |
B (mm) |
Minimum bend radius (mm) |
D (mm) |
Pipe Schedule | Wall thickness (mm) |
| 1/4” | 61 | 44 | 38.0 | 13.5 | 40 | 2 |
| 5/16” | 76 | 56.0 | 48 | 16.5 | 40 | 2 |
| 3/8” | 106 | 63 | 50 | 18 | 40 | 2.3 |
| 1/2” | 115 | 67.5 | 50.2 | 22 | 40 | 2.8 |
| 80 | 3.7 | |||||
| 3/4” | 131 | 84.5 | 66 | 28 | 40 | 2.9 |
| 80 | 3.9 | |||||
| 1” | 147 | 96.5 | 75.4 | 34 | 40 | 3.4 |
| 80 | 4.5 | |||||
| 1¼” | 195 | 134 | 108.7 | 43 | 40 | 3.6 |
| 1½” | 242 | 162 | 133.5 | 50 | 40 | 3.7 |
| 2” | 297 | 238 | 199.2 | 62 | 40 | 3.9 |
| 2½” | 380 | 257 | 209 | 79 | 40 | 5.2 |
| 3” | 436 | 390 | 335 | 90 | 40 | 5.5 |
| 4” | 555 | 450 | 400 | 110 | 40 | 6 |
