Hand-operated Hydraulic Cable Cutters HHD-40A

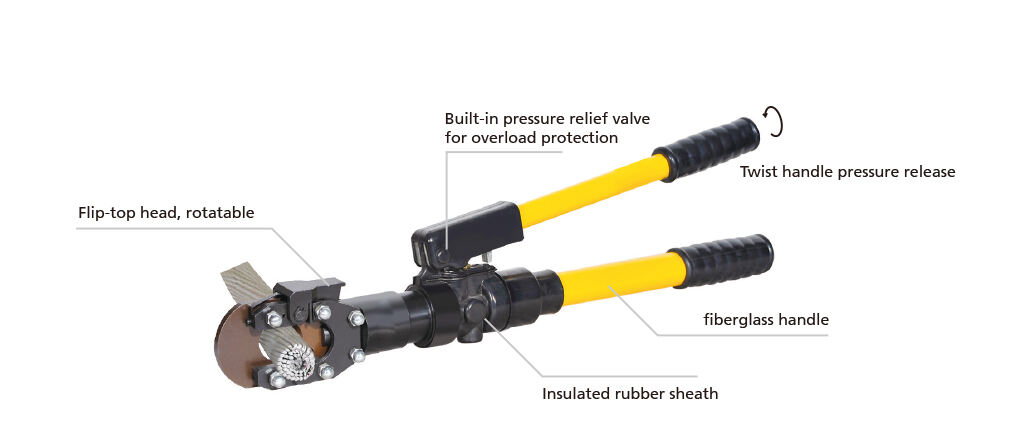

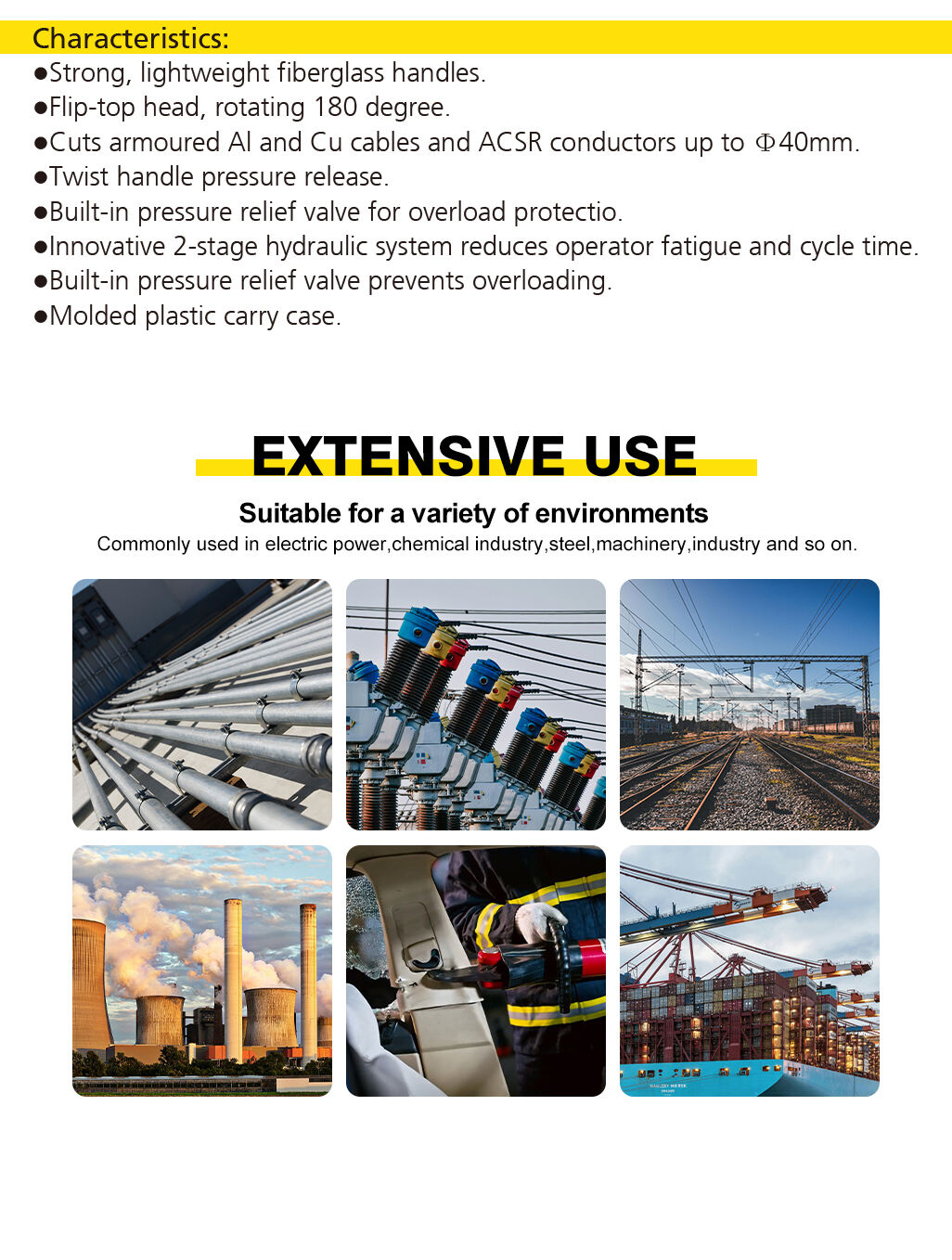

The HHD-40A hydraulic cutter delivers 9 tons of output, featuring a 180-degree rotatable flip-top head for versatile cutting of copper, aluminum, and ACSR conductors up to Ø40mm. It includes strong, lightweight fiberglass handles with an insulated rubber sheath for comfort. The innovative two-stage hydraulic system reduces operator fatigue and cycle time, while a built-in pressure relief valve prevents overloading. The twist handle facilitates easy pressure release. Housed in a molded plastic carry case, this tool is ideal for various industrial environments, including electric power and chemical industries.
Description
Hand-operated Hydraulic Cable Cutter, HHD-40A
Cuts armoured Al and Cu cables and ACSR conductors
Insulated fiberglass handles
with built-in safety valve
| Model | Hydraulic Ram Output | Cutting range(mm) | G.W. (kg) |
Packing size (cm) |
| HHD-40A | 9 Ton | Ø40mm(Copper,Aluminum/armored cable/Aluminum conductors cable steel-reinforced) |
9.3 | 770x120x220 |
