Flange Spreaders HHP-538 HHP-1054
Flange Spreaders

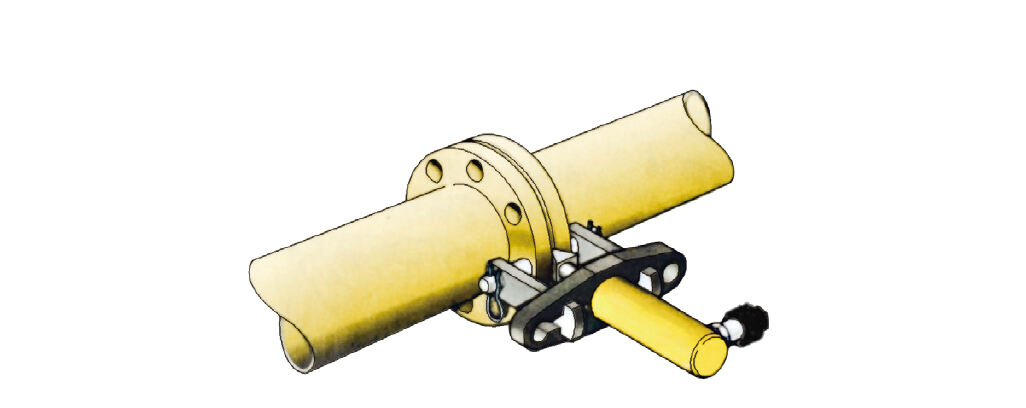

Separation of stubborn joints for inspection and maintenance particularly those fitted with ring grooves or those withexternal forces acting on them are often difficult to separate. The use of hammers and wedges, chain blocks and leverbars can damage joint components and present a potential safety risk.HYDRARITE Wedge Spreaders and Flange Spreader are the ideal solutions.
Description

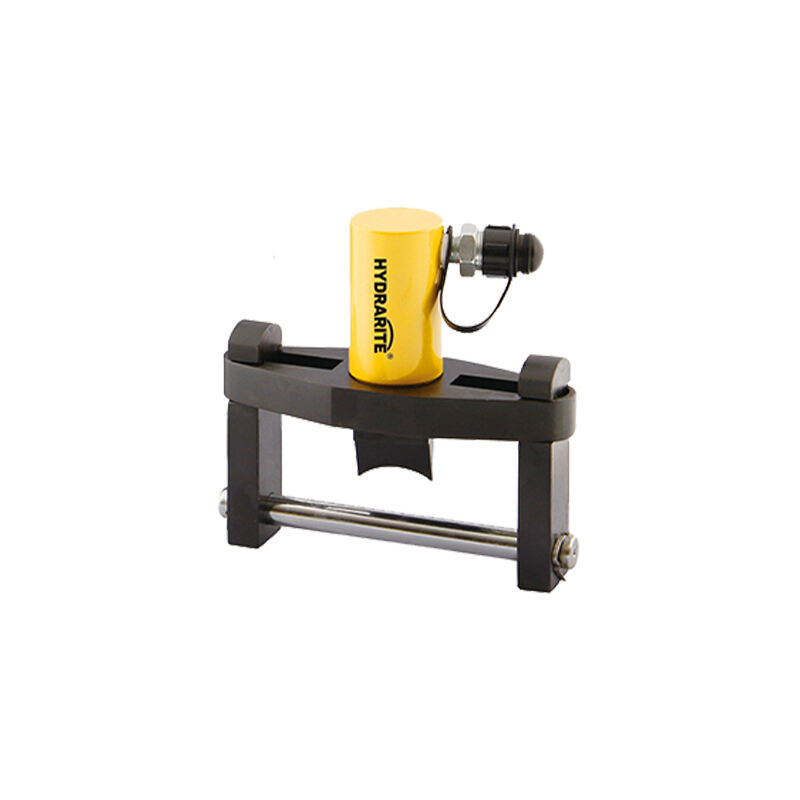

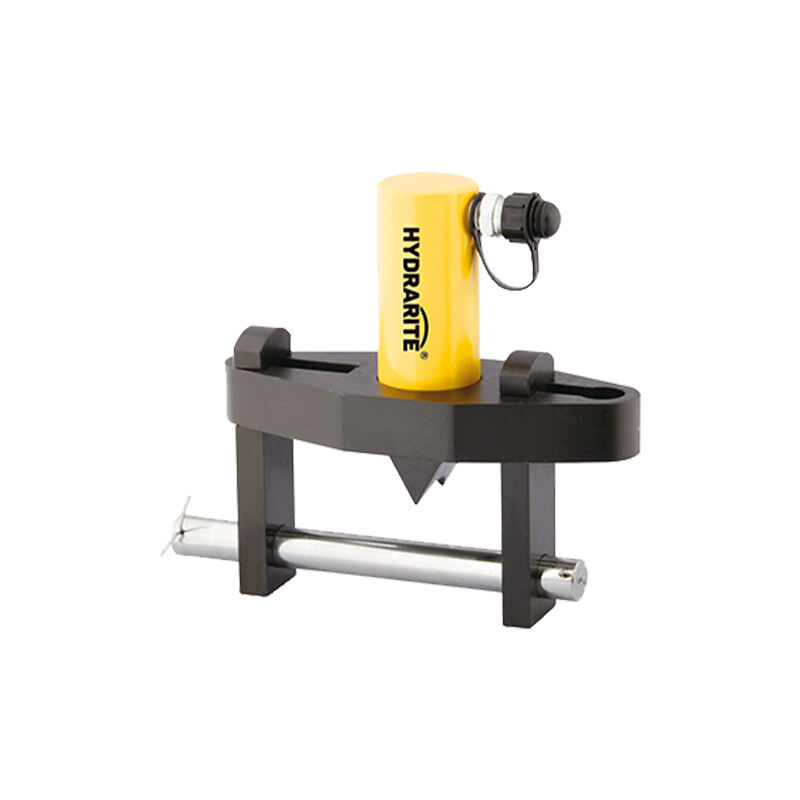

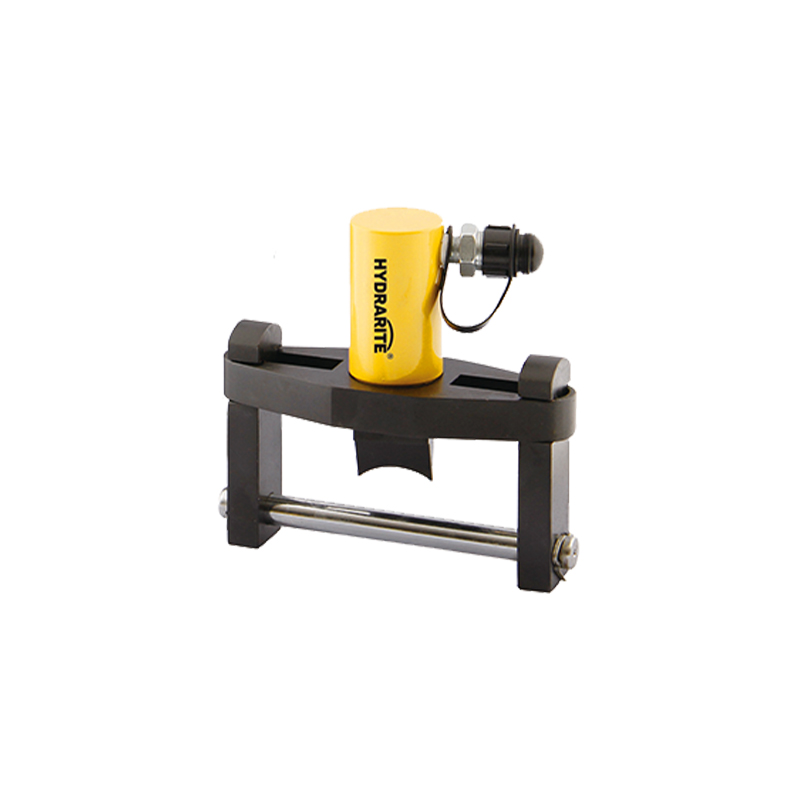

Hydraulic Flange Spreaders

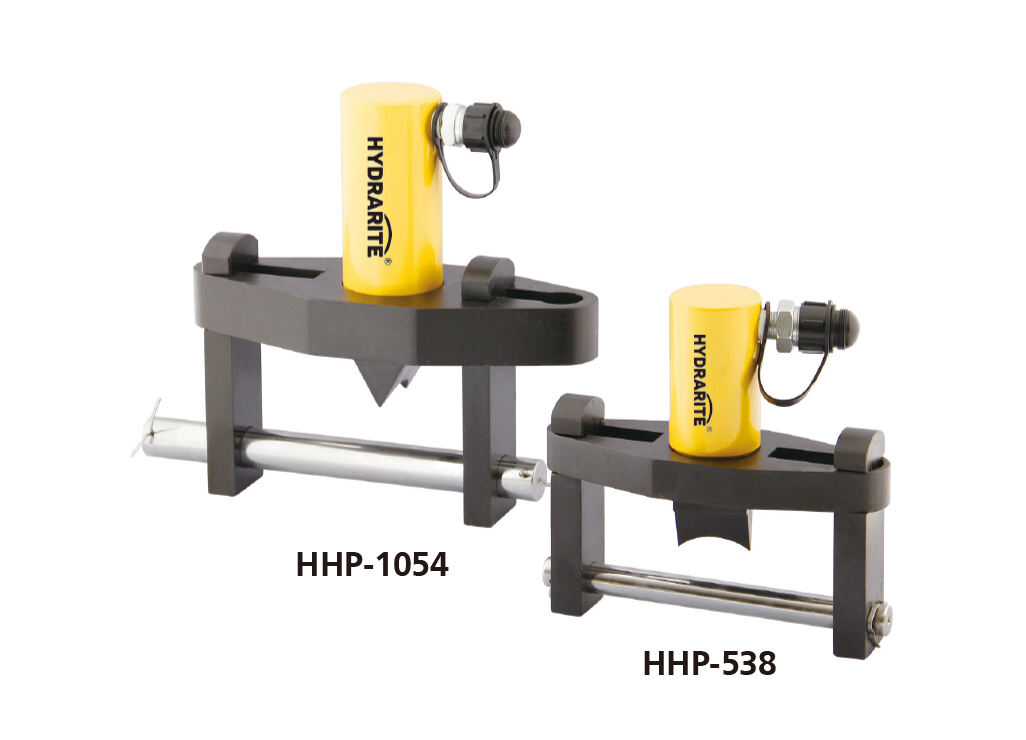

HHP-538, HHP-1054
| Model | Max Flange thickness (mm) |
Stud Size (mm) |
Standard Wedge (mm) |
Output Force (ton) |
Stroke (mm) |
Packing size (cm) |
G.W. (kg) |
| HHP-538 | 2×57 | 19-28 | 3-28 | 5 | 38 | 24×23×10 | 6 |
| HHP-1054 | 2×92 | 31-41 | 3-28 | 10 | 54 | 32×31×14 | 13.2 |
| ASA rating(bar) | Pipe szie(mm) | |
| HHP-538 | HHP-1054 | |
| 10 | 127-508 | 558-1066 |
| 20 | 63-355 | 406-711 |
| 27 | 63-304 | 355-609 |
| 35 | 63-254 | 304-508 |
| 62 | 12-152 | 203-406 |
| 103 | 12-88 | 101-203 |
| 172 | 12-63 | 76-101 |
