Description
Hydraulic Crimping Heads
For use in indoor and outdoor power distribution and transmission projects,
splicing fittings, overhead and underground conductors.
| Model | Output force (ton) |
Ram stroke (mm) |
Crimping range (mm²) |
Crimping dies (mm²) |
Crimp pattern | G.W. (kg) |
Packing size (mm) |

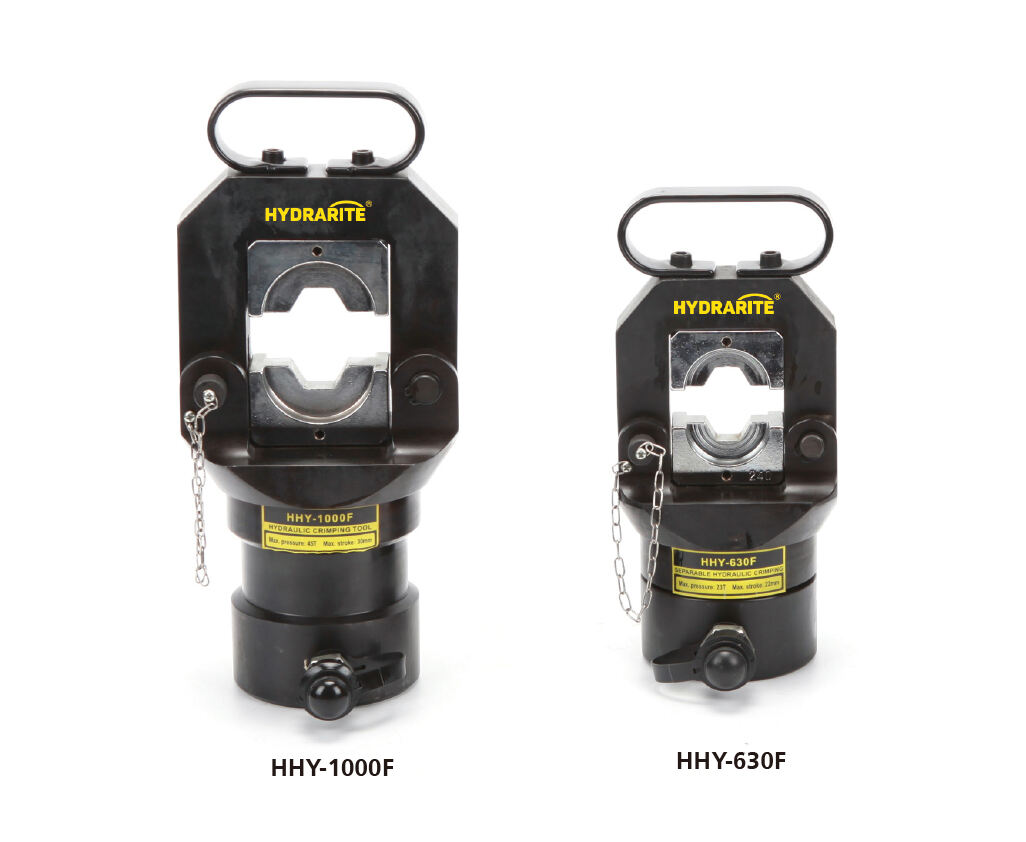

| HHY-1000F | 35 | 30 | 240-1000 | 4,005,006,308,001,000 | Hexagonal type | 23.7 | 200×200×370 |
| HHY-630F | 23 | 21 | 150-630 | 240,300,400,500,630 | Hexagonal type | 15 | 185x170x300 |
