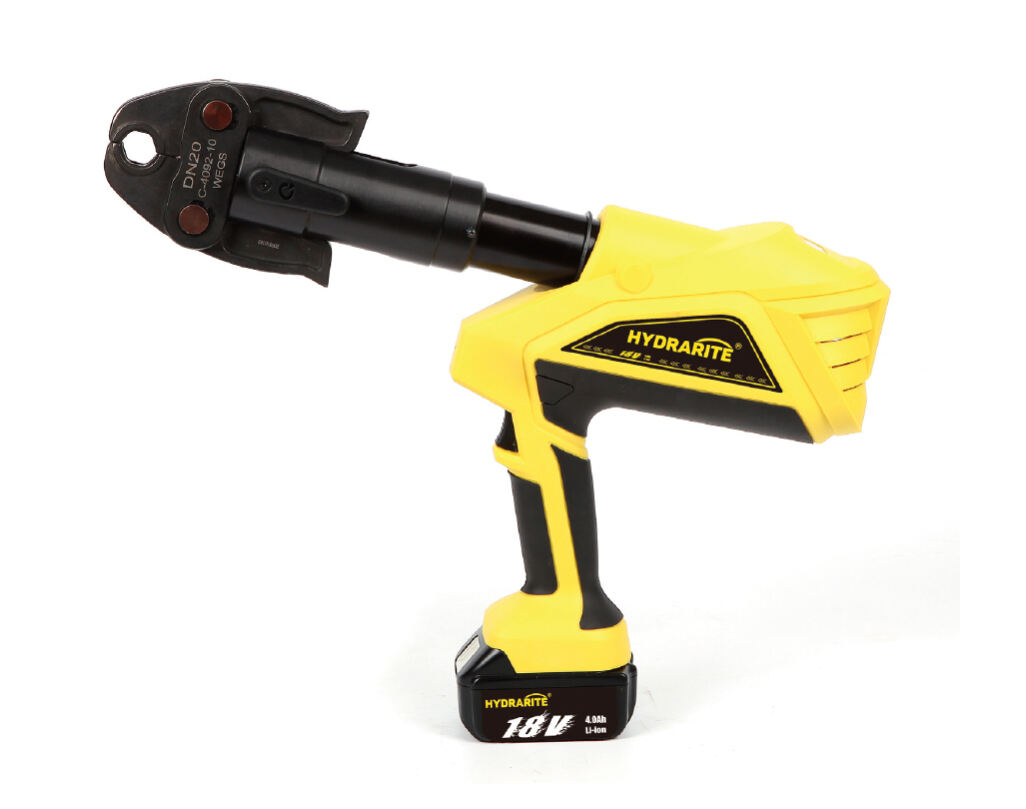

Battery-operated pressing tool HHYD-1550

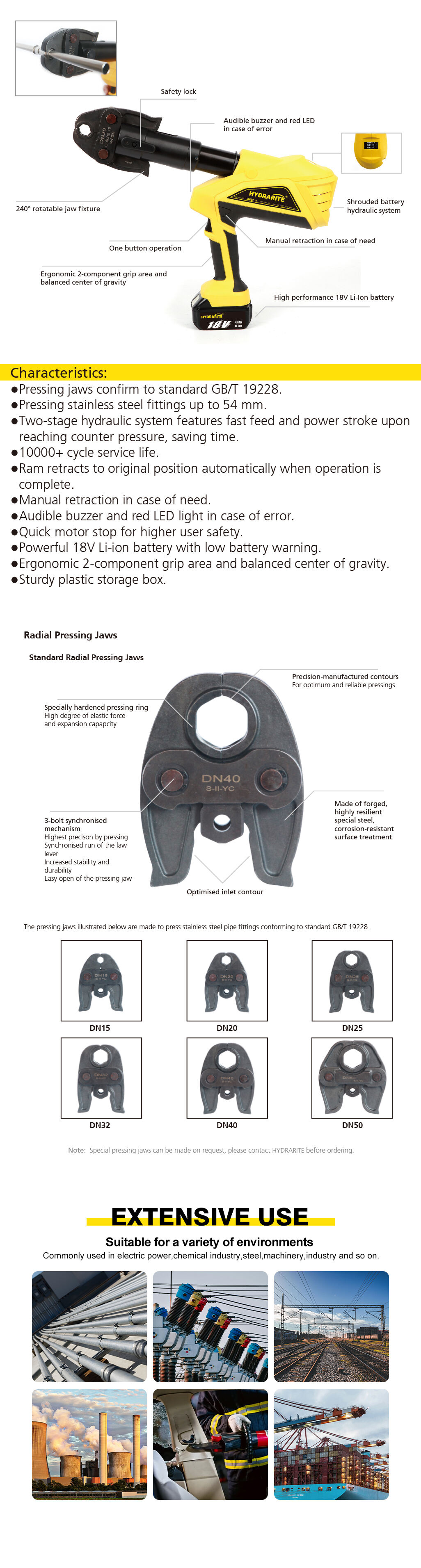

This pressing tool is designed for high performance and reliability, featuring jaws that conform to GB/T 19228 standards and capable of pressing stainless steel fittings up to 54 mm. Its two-stage hydraulic system offers a fast feed and power stroke, optimizing efficiency by adjusting automatically at counter pressure. With a lifespan of over 10,000 cycles, the ram automatically retracts after each operation, with manual retraction available if needed. An audible buzzer and red LED alert users to errors, while a quick motor stop enhances safety. Powered by an 18V Li-ion battery with a low battery warning, it boasts an ergonomic 2-component grip and balanced center of gravity for comfortable handling. The tool is stored in a sturdy plastic box, ensuring durability and easy transport.
Description
| Model | HHYD-1550 |
| Output force | 3.2 ton |
| Stroke | 35mm |
| Battery capacity | 300 times press cycles(DN 20 Stainless steel pipe) |
| Pressing times | 5s-8s |
| Battery | 18V/4.0Ah Li-ion |
| Mould type | round |
| Pressing jaws | DN15,DN20,DN25,DN32,DN40,DN50 |
| Battery | 2pcs |
| Charger | 1pc |
| Seals | 1set |
| Weight(Kg) | 27 |
| Packing size(mm) | 585×500×170+210×200×120 |
